PRODUCT DETAIL

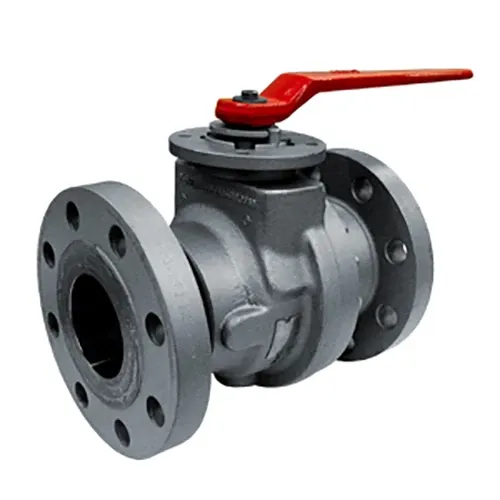

Floating Ball Valves-FK75M The Argus FK75M is a standardized split‑body floating ball valve optimized for chemical and petrochemical applications. Its mature, unified structural design ensures stable performance, easy maintenance and outstanding adaptability for diverse process conditions.
The Argus™ FK75M is a split‑body floating ball valve featuring a highly standardized and modularized construction. Specially engineered for chemical and petrochemical processing environments, it delivers consistent, reliable and long‑term performance for general and severe industrial service.
Technical Data
Temperature range -48°C to 400°C -54°F to 752°F
Pressure rating PN 16 to PN 40 (DIN) Class 150 to 900 (ASME) Specifications
ASME B16.34
API 6D
PED 97/23/EC
Fire-safe API 607/ ISO 10497-5
Oxygen Service ASTM G124, BAM, EIGA
FE (Fugitive emission) ISO 15848, TA LUFT VDI/VDE 2440
ISO 9001
Anti-static DIN EN ISO 17292
Shell SPP 77/300 - CG Spec (Slag sluice systems)
Brazil NBR 15847
Cryogenic BS 6364, SPE 77/306
Size Range DN 65 to 200mm (DIN);NPS 2 1/2 to 12 (ASME) Product Information Model: Floating Ball Valves-FK75M Category: Ball Valves Brand: Argus Application: Process control and field service Medium: Confirmed by project condition Keywords: Ball Valves Support: selection review, assembly calibration, and field service Related topics Ball Valves
