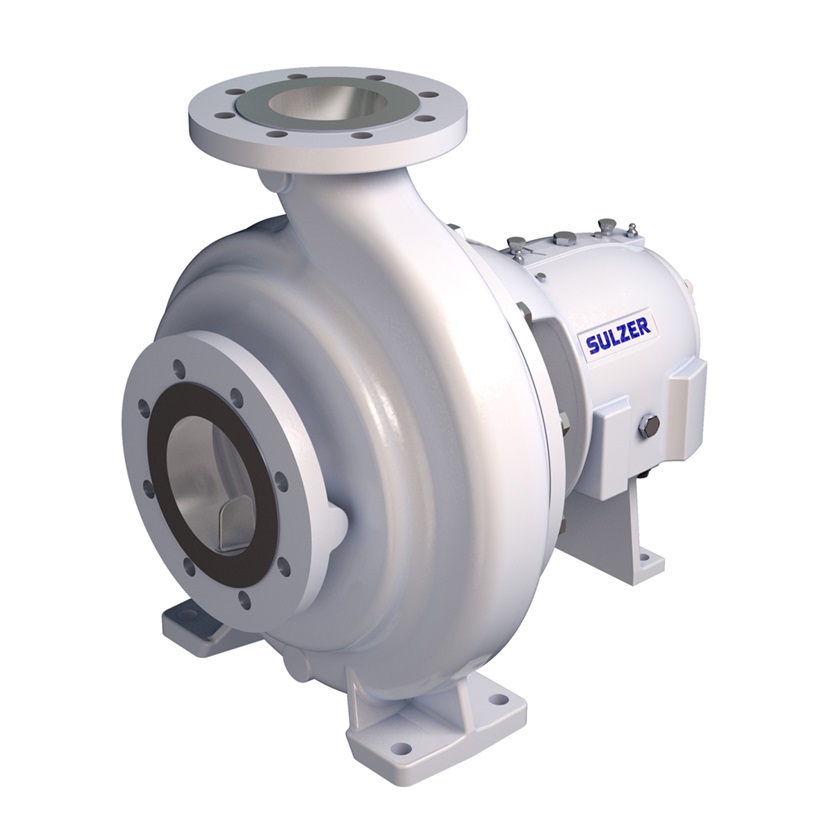

The AHLSTAR APT end‑suction single‑stage centrifugal process pump is purpose‑built for demanding industrial applications. It delivers outstanding process reliability, high hydraulic efficiency and optimised long‑term operating‑cost performance.
Technical Data
- Temperature range
- Temperatures up to 180 °C / 356 °F
- Pressure rating
- Pressures up to 16 / 25 bar, 230 / 360 psi, depending on material and size
Specifications
- Capacities
- up to 9'000 m3/h / 39'600 USgpm
- Heads
- up to 160 m / 525 ft
- Discharge sizes
- from 32 mm / 1 ¼ in to 600 mm / 24 in
- Maximum speed of rotation
- up to 3 600 rpm
- Performance range
- AHLSTAR APT Range centrifugal pumps have large and tight hydraulic coverage to satisfy the most demanding requirements of industrial applications.
