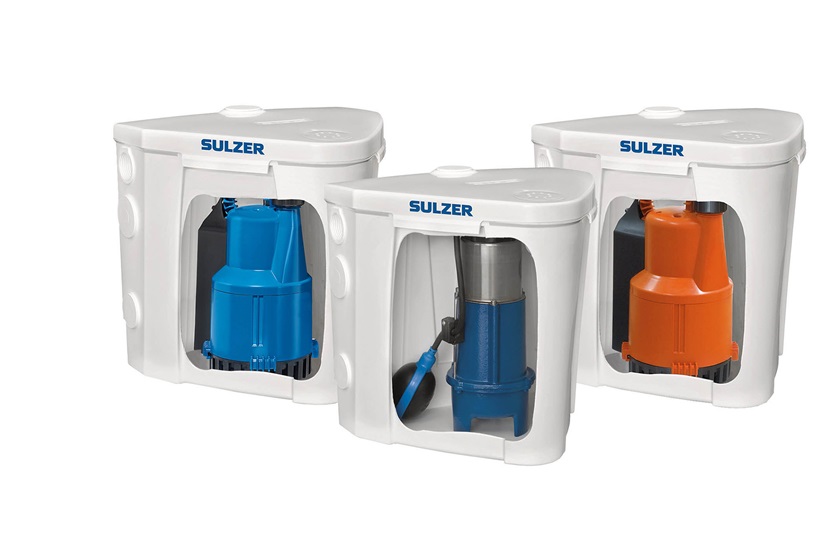

Lifting station type ABS Sanimax

Name: Lifting station type ABS Sanimax
SKU: Lifting station type ABS Sanimax

Sanimax floor‑level sump with Robusta / MF submersible pumps complies with EN 12050‑2, pumping domestic wastewater for areas situated below sewer level.

Product category

Sanimax is a floor‑mounted sump unit fitted with submersible pumps selected from the Robusta or MF series, including the MF 154 HW hot‑water pump and Robusta 200 C for mildly‑aggressive water. Compliant with EN 12050‑2, Sanimax transfers wastewater generated by washing machines, sinks, dishwashers, showers and bathtubs for building zones located below sewer‑pipe elevation.

Technical Data

Temperature range: Temperatures: 40° C (maximum 60° C for five minutes)

Specifications

Capacity: 14 m³/h (60 US gpm)
Head: 11 m (36 ft)
Discharge sizes: DN 40
Maximum speed of rotation: 2,900 min-1
