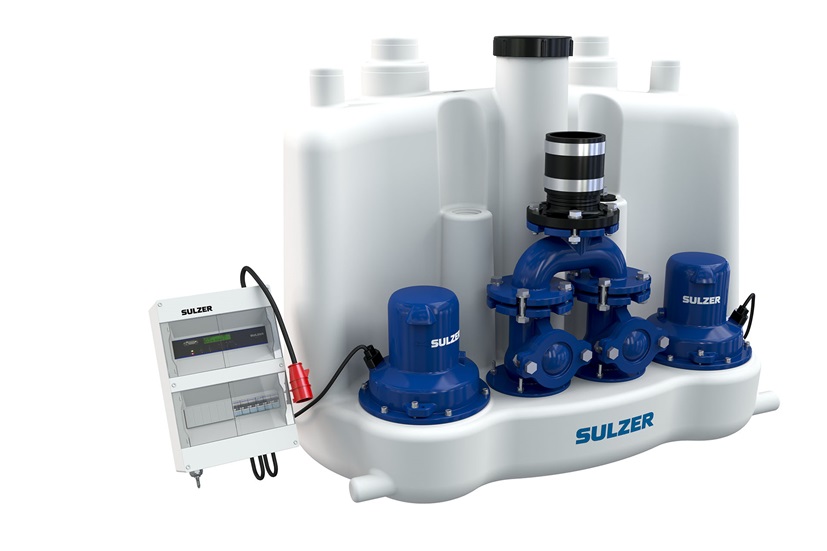

Lifting station type ABS Sanimat 2002

Name: Lifting station type ABS Sanimat 2002
SKU: Lifting station type ABS Sanimat 2002

Sanimat 2002 flood‑proof dual‑pump lifting station for apartments and large‑buildings (new‑build /retrofit). EN 12050‑1 compliant for automatic sewage pumping below back‑water level.

Product category

Sanimat 2002 is a flood‑resistant dual‑pump lifting station optimized for reliable sewage discharge within apartments and large‑scale buildings, for both new‑build and retrofit applications. Compliant with EN 12050‑1, it performs automatic sewage pumping for zones situated below back‑water level.

Technical Data

Temperature range: Temperatures: 40° C (maximum 60° C for five minutes)

Specifications

Capacity: 55 m³/h (242 US gpm)
Head: 18 m (59 ft)
Discharge sizes: Discharge flange DN 80, plus flanged socket with 4” sleeve and clips (for discharge pipe DN 80/100).
Maximum speed of rotation: 1,450 min-1 (Sanimat 2002 D/HD);2,900 min-1 (Sanimat 2002 D/XD)
