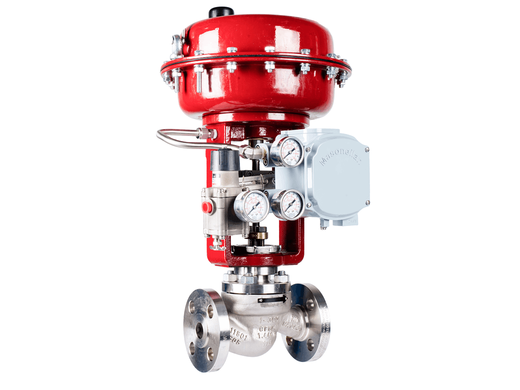

Experience flawless performance paired with long-term reliability from the Masoneilan PXR single seated globe control valve. Developed to operate across countless standard industrial process conditions, the PXR maximizes flow control efficiency and boosts size-based Cv output, all powered by premium investment casting and carefully tuned body and plug contours.
Combining superior performance and proven reliability, the Masoneilan PXR single seated globe control valve suits most common industrial process applications. Advanced investment casting and optimized body & plug profiles grant the PXR superior flow regulation and higher Cv for each nominal size.
Extremely flexible, the PXR comes with interchangeable trims. The standard stem and port guided unbalanced trim firmly holds the plug for smooth, stable modulation. Hardened full, reduced and low-flow trims are available to cover diverse flow ranges.
Its threaded seat ring and unbalanced plug design deliver standard tight shutoff up to ANSI/FCI 70-2 Class IV or V without balance seals or pilot plugs. Compatible with multiple positioner choices, the PXR lets users customize digital functionality according to cost and process demands.
Engineers can size and select PXR valves using Masoneilan ValvStream™ Sizing and Selection Program, or consult local channel partners for assistance.
Technical Data
Model series
0.5” up to 6”, DN 15 up to DN 150
Pressure rating
ASME Class 150 or 300, PN 20 or PN 40 Seat Leakage IEC 60534-4 and ASME and FCI 70.2 Class: IV, V Temperature Range: -29°C (-20°F) to 350°C (662°F)
Body material
carbon steel, stainless steel, Hastelloy, Monel
