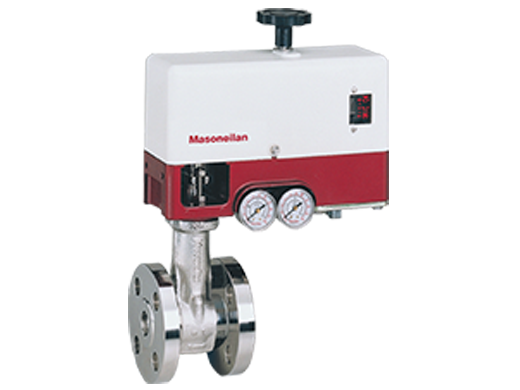

Masoneilan 28000 Series Varipak™ Valve
Masoneilan Varipak control valves are built for low flow conditions, offering precise throttling performance with comprehensive optional features. Optimized layout creates an ultra-compact, fully integrated valve unit.
The Masoneilan Varipak series control valves are specially developed to suit low-flow working conditions. They achieve outstanding throttling control performance and support various optional configurations and functional modules. Through structural optimization, the valve assembly features high integration and minimal overall dimensions.
Technical Data
Model series
1” (25 mm) standard 1/2” through 3/4” (15 through 20 mm) available on request
Pressure rating
Flanged: ANSI 150 - 1500 Flangeless for mounting between flanges: ANSI 150 – 2500, UNI-DIN 10 - 400 Screwed: NPT 1/2” through 1” (15 through 25 mm)
Body material
stainless steel; monel; hastelloy C; alloy 20
