PRODUCT DETAIL

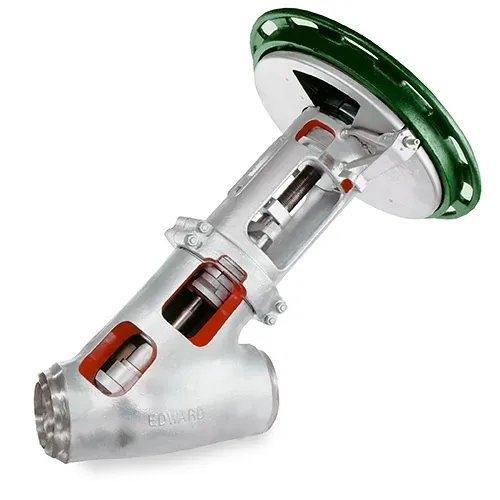

Y-Pattern Globe Valves-Flite-Flow

Name: Y-Pattern Globe Valves-Flite-Flow
SKU: Y-Pattern Globe Valves-Flite-Flow

Optimized for high‑pressure and high‑temperature service, the Edward Flite‑Flow Y‑pattern globe valve achieves high‑flow capacity and low‑leakage performance, with standard cast‑body and optional forged‑body versions available.

Product category

The Edward® Flite‑Flow Y‑Pattern Globe Valve is engineered to deliver maximum flow capacity and minimal leakage under high‑pressure, high‑temperature operating conditions. It is available in two construction variants: cast body as standard configuration, with forged‑body design offered as an optional upgrade.

Specifications

ASME: B16.34
ASME: Section III
Parameter: CAST
Size Range: DN 65 to 800; NPS 2½ to 32
Pressure Class Range: PN 50 to 760; Class 300 to 4500
Seating Material: Metal
Parameter: FORGED
Size Range: DN 250 to 400; NPS 10 to 16
Pressure Class Range: PN 420; Class 2500
Seating Material: Metal

Y-Pattern Globe Valves-Flite-Flow

Product category

Specifications

ASME: B16.34
ASME: Section III
Parameter: CAST
Size Range: DN 65 to 800; NPS 2½ to 32
Pressure Class Range: PN 50 to 760; Class 300 to 4500
Seating Material: Metal
Parameter: FORGED
Size Range: DN 250 to 400; NPS 10 to 16
Pressure Class Range: PN 420; Class 2500
Seating Material: Metal
