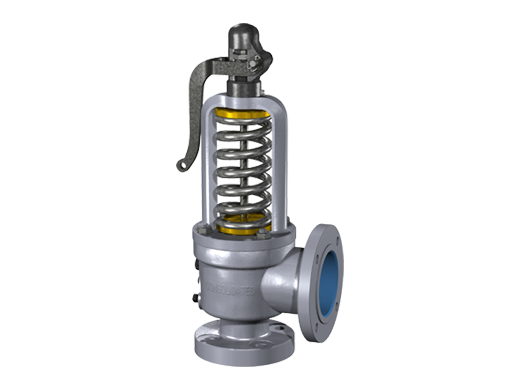

Engineered for cost efficiency and high flow capacity, the Consolidated 1811 series safety valves utilize an optimized seat design to boost sealing performance and throughput. Covering ASME Class 300 to 600 inlet pressure classes, this valve model is certified by the U.S. Coast Guard and permitted for power boilers and a full range of marine service applications.
Technical Data
- Temperature range
- Up to 1000°F
- Pressure rating
- 15 psig to 725 psig
- Body material
- Alloy and carbon steel cast body with stainless steel trim
Specifications
- Inlet Sizes
- 1 1/4" through 6"
- Inlet Ratings
- ANSI Class 300 and 600
- Outlet Sizes
- 1 1/2" through 8"
- Outlet Ratings
- ANSI Class 150
- Orifice Sizes
- Ten sizes – F through Q
