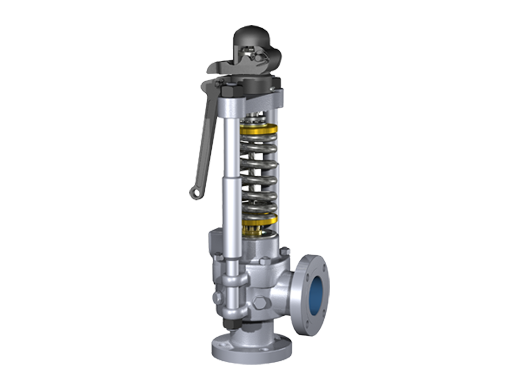

Consolidated’s Model 1700 Maxiflow safety relief valves boast a proven track record across countless field installations, engineered to deliver superior overpressure safeguarding for boiler systems. Featuring enhanced seating tightness alongside instant full-lift actuation and fast reseating once system pressure drops, these valves effectively cut steam leakage, thereby boosting overall power plant operational efficiency.
Technical Data
- Temperature range
- Up to 1200°F
- Pressure rating
- 100 psig to 5800 psig
- Body material
- Alloy and carbon steel cast body with stainless steel trim
Specifications
- Inlet Sizes
- 1 1/2" through 6"
- Inlet Ratings
- ANSI Class 600 through 4500
- Outlet Sizes
- 3" through 10" flanged
- Outlet Ratings
- ANSI Class 150 and 300
- Orifice Sizes
- Eleven sizes – 1 through RR
