Name: Masoneilan 84000 Series SteamForm™ Steam Conditioning Valve
SKU: Masoneilan 84000 Series SteamForm™ Steam Conditioning Valve

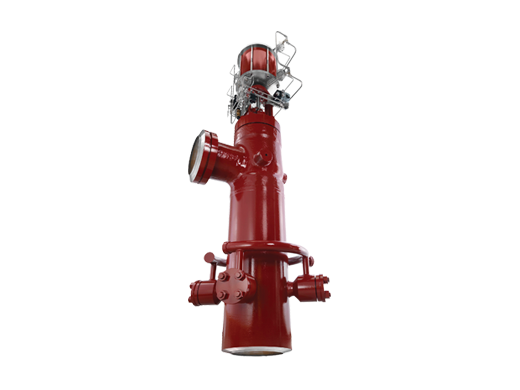

Masoneilan 84000 Series SteamForm™ Steam Conditioning Valve

Masoneilan steam‑conditioning‑valve series integrates low‑noise trim and a patented water‑injection system for combined pressure‑temperature reduction service. Backed by 125+ years of pressure‑control experience and modern desuperheating technology, the SteamForm™ line offers highly‑efficient steam conditioning.

Masoneilan’s comprehensive steam‑conditioning‑valve portfolio features versatile configurations including low‑noise trim and a patented water‑injection system, delivering an all‑in‑one solution for services requiring integrated pressure and temperature reduction.
Built upon over 125 years‑long expertise in pressure‑control technology combined with state‑of‑the‑art desuperheating solutions, the SteamForm™ product‑range provides a highly‑efficient integrated steam conditioning package。

Technical Data

Pressure rating: flanged: ANSI 150 - 2500 UNI-DIN 10 - 400; welded: BW
Body material: carbon steel; chrome-moly

Specifications

Size: Trim Sizes: 3” through 24” (80 through 600 mm); Pipe Sizes: 3” through 48” (80 through 1200 mm)
Actuators: model 87/88 multi-spring diaphragm; model 37/38 spring diaphragm; cylinder
Trim: single or double stage Lo-dB with optional diffuser and V-LOG energy management trim; thermally compensated high temperature trim options
Inherent Characteristics: linear or equal percentage
