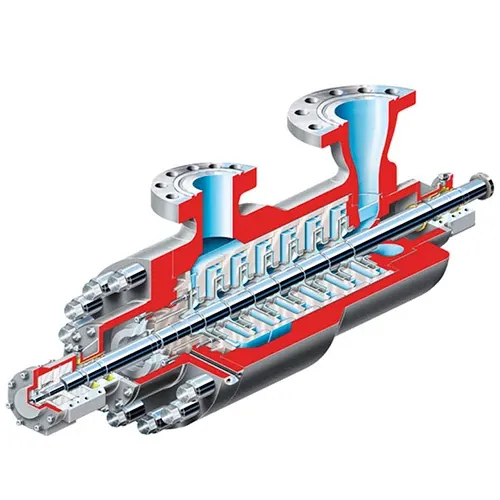

The Flowserve WCC is a robust between‑bearing, multistage, double‑case diffuser‑style barrel pump engineered for medium‑duty process applications across the oil and gas, chemical, and general industrial sectors. Market‑proven with an extensive global installed base, the WCC(D) medium‑duty multistage barrel pump delivers unique advantages within Flowserve’s double‑case barrel pump portfolio. While engineered to cover a comprehensive standard operating envelope, the WCC platform supports fully customized hydraulic designs and tailored pump packages to accommodate field operating conditions that exceed standard product range limits.
Technical Data
- Temperature range
- Temperature: -73°C to 425°C (-100°F to 800°F)
- Pressure rating
- Pressure: 300 bar (4350 PSI)
Specifications
- Parameter
- ISO 13709 / API 610
- Parameter
- Hydraulic Institute
- Parameter
- Customer specifications
- Flows
- 1000 m3/hr (4400 gpm)
- Head
- 4000 m (13000 ft)
- Flange ratings
- 600# up to 2500#
- 6 sizes with discharges from
- 2" to 10" existing of 44 hydraulics
- Size Range
- 4 Sizes (3” to 8”) with 18 available hydraulics
