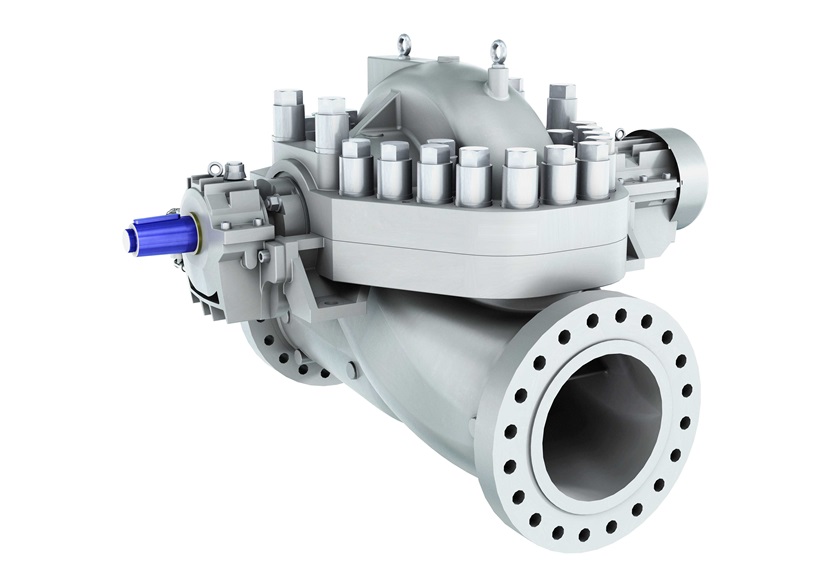

The HSB is an API 610 (ISO 13709) Type BB1 horizontal, axially split, single-stage between-bearing process pump. It has a proven global track record in crude oil pipeline transportation. Built with a robust casing and custom-tailored hydraulics, the HSB is fully optimized to satisfy diverse and project-specific operational requirements.
Technical Data
- Temperature range
- Temperatures: Up to 205°C / 400°F
- Pressure rating
- Pressures: Up to 150 bar / 2,200 psi
Specifications
- Capacities
- Up to 10,000 m3/h / 45,000 US gpm
- Heads
- Up to 550 m / 1,800 ft
- Discharge sizes
- 150 to 750 mm / 6 to 30 inches
- Maximum speed of rotation
- Up to 5,000 rpm
