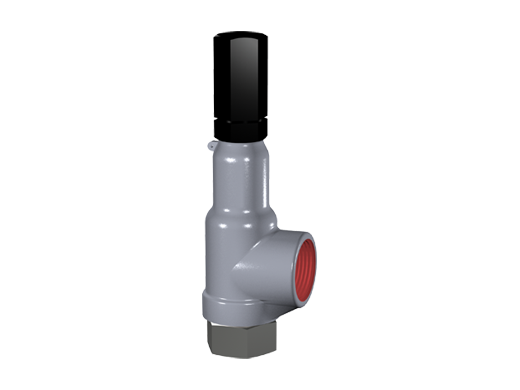

Consolidated 19000 series pressure relief valves deliver superior tight shut-off, high flow capacity and optimized blowdown performance across a wide range of process fluids. The unit exceeds all performance criteria outlined in ASME standards, and fully meets EU PED directive requirements for overpressure safeguarding with valid CE certification.
Technical Data
- Temperature range
- -425°F to 1100°F
- Pressure rating
- 5 psig to 8000 psig
- Body material
- Stainless/Carbon Steel with stainless trim
Specifications
- Parameter
- Inlet Sizes：1/2" to 2"
- Parameter
- Inlet Ratings：Threaded and ASME Class 150 to 2500
- Parameter
- Outlet Sizes：1” to 2 ½”
- Parameter
- Outlet Ratings：Threaded and ASME Class 150 to 300
- Parameter
- Orifice Sizes：.096 sq. in. through 0.567 sq. in.
