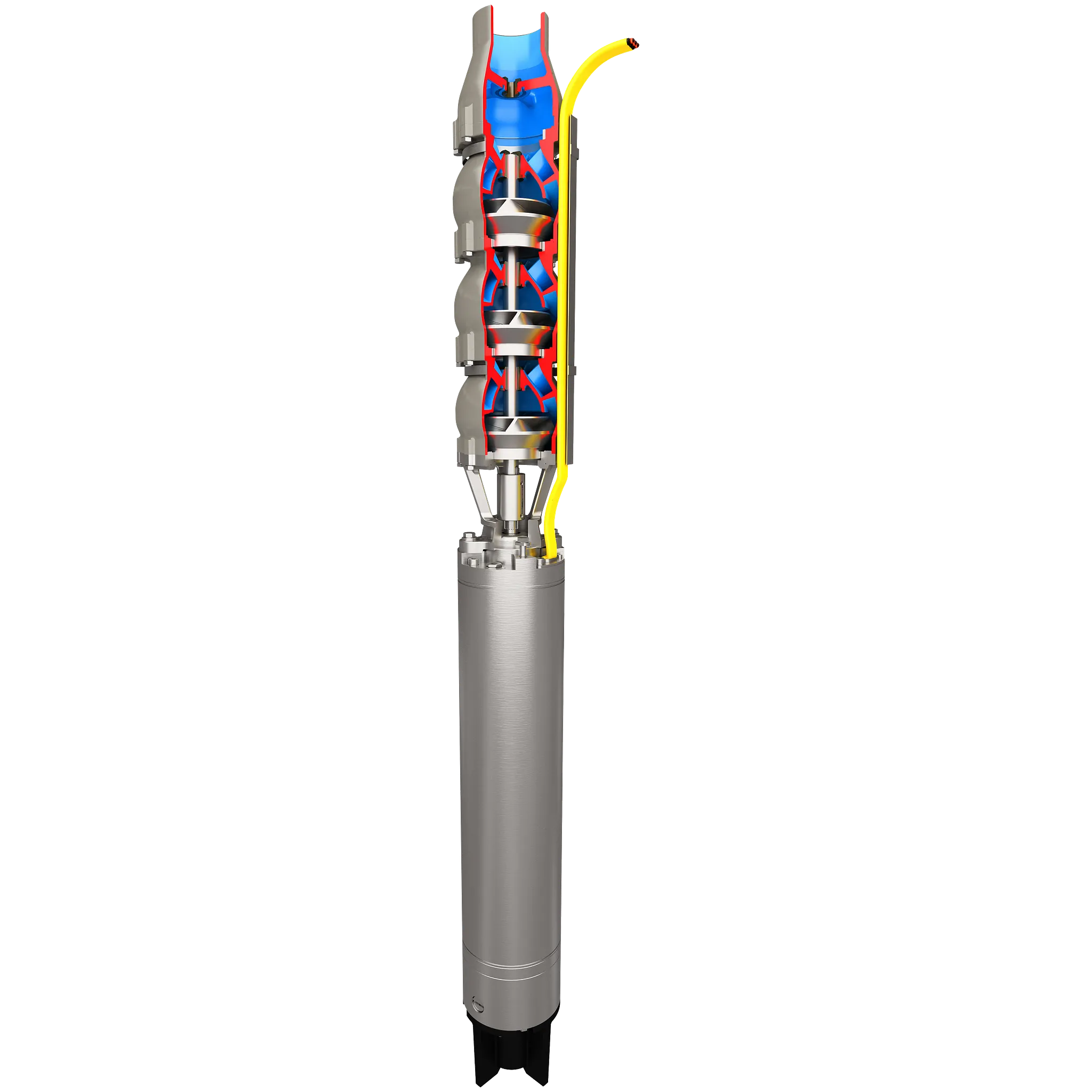

Byron Jackson SUBM Submersible Pump With H2O Water-Filled Motor
Byron Jackson H2O deep‑well pumps adopt direct‑coupled water‑filled motors for continuous service. Multiple hydraulics, materials and optional accessories are offered to match varied site requirements and maximize application value.
The Byron Jackson H2O deep‑well pump is equipped with direct‑coupled water‑filled motors. Available in single‑stage or multistage configurations, it is built for continuous‑duty operation. A broad portfolio of hydraulic designs, material options and auxiliary selections delivers optimized cost‑performance for diverse field applications.
Specifications
Flowserve
Flows to 4500 m³/h (19800 gpm);Heads to 800 m (2625 ft);Motor sizes to 2237 kW (3000 hp)
Size Range
Pump sizes from 150 mm (6 in) to 762 mm (30 in), motor sizes from 150 mm (6 in) to 762 mm (30 in);Motor power up to 2237 kW (3000 hp) 2-8 pole designs, 50 & 60 Hz;Voltage up to 6600V
