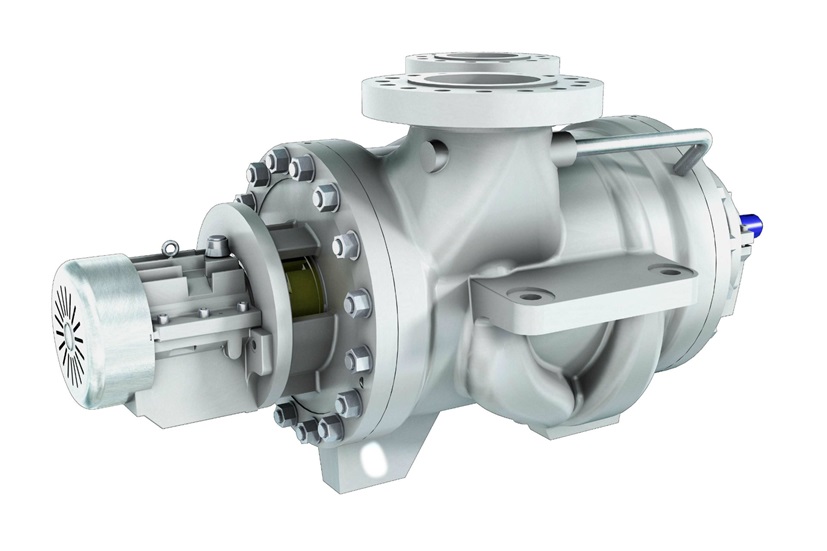

The two‑stage, radially‑split BBT/BBTD pumps comply with ISO 13709 / API 610 Type BB2 and deliver the broadest hydraulic‑performance envelope in the industry. The BBTD variant is equipped with a double‑suction impeller for lower NPSH3, making it suitable for demanding refinery duties and other critical‑process applications.
Technical Data
- Temperature range
- Temperatures: Up to 425 °C / 800 °F
- Pressure rating
- Pressures: Up to 100 bar / 1,450 psi
Specifications
- Capacities
- Up to 2,300 m3/h / 10,000 US gpm
- Head
- Up to 760 m / 2,500 ft
- Discharge sizes
- From 150 to 250 mm / 6 to 10 inches
- Maximum speed of rotation
- Up to 3,600 rpm
