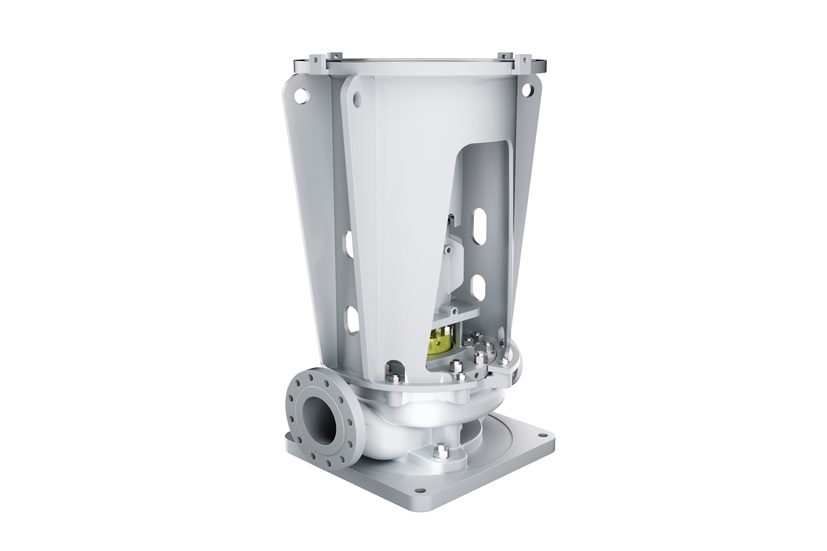

The OHV is an API 610 (ISO 13709) Type OH3 single‑stage, radially split overhung process pump. Adopting vertical inline centerline‑mounted construction, it delivers an industry‑leading comprehensive performance range, serving heavy‑duty services in refineries, petrochemical plants, gas processing and offshore oil production.
Technical Data
- Temperature range
- Temperatures:50Hz -160 to +340°C ; 60Hz -256 to +650°F
- Pressure rating
- Pressures:50Hz up to 51 bar ;60Hz Up to 740 psi
Specifications
- Pump sizes
- 50Hz 1 to 10 In;60Hz 25 to 250 mm
- Capacities
- 50Hz up to 1,450 m3/h ;60Hz Up to 6,800 USgpm
- Heads
- 50Hz up to 350 m;60Hz Up to 1,150 ft
