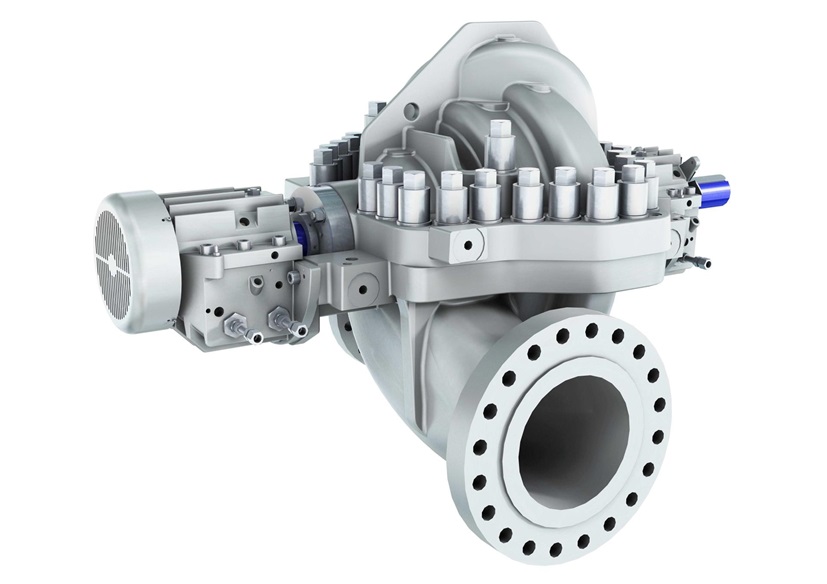

The MSD‑RO draws on Sulzer’s extensive global track‑record of delivering high‑pressure pumps for large‑scale seawater reverse‑osmosis (SWRO) desalination plants, with an aggregate installed capacity of 2.5 million m³/day. This two‑stage, axially‑split, single‑suction centrifugal pump is purpose‑built for high‑pressure membrane feed duties in seawater reverse‑osmosis desalination systemsSulzer
Technical Data
- Temperature range
- Up to 60°C / 140°F
- Pressure rating
- Up to 90 bar / 1,305 psi
Specifications
- Capacities
- Up to 1,600 m3/h / 7,000 US gpm
- Heads
- Up to 650 m / 2,150 ft
- Maximum speed of rotation
- Up to 3,600 rpm
