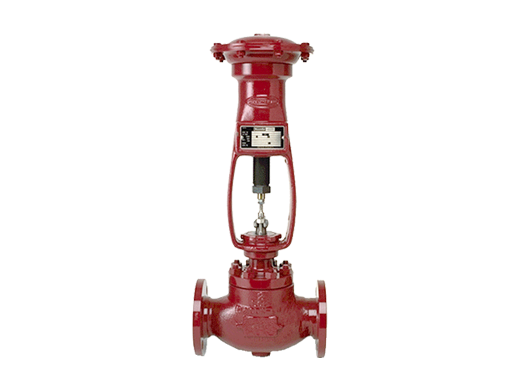

Masoneilan 535H-536H Pressure Regulator for Reducing, Back Pressure and Differential Service

Baker‑Hughes Masoneilan 535H and 536H pressure regulators provide accurate pressure reduction for air, liquids, saturated and superheated steam. Available in sizes ¾” through 2”, with full‑area or reduced trim, they are suited for small‑to‑medium flow applications requiring Class IV or VI shut‑off per IEC 60534‑4 / ANSI/FCI 70.2. For service temperatures above the diaphragm temperature limit, fit the actuator beneath the valve‑body centre‑line. A condensate barrier in the sensing line and actuator case protects the diaphragm. Alternative mounting requires an independent condensate‑barrier assembly. Contact the factory for additional information.

The Masoneilan™ Model 535H / 536H pressure regulators by Baker‑Hughes deliver precise downstream pressure regulation for air, liquids, saturated‑steam and superheated‑steam media. Offered in ¾”, 1”, 1‑½” and 2” sizes, these regulators are configurable with full‑area or reduced‑capacity trim to accommodate low‑to‑moderate flow‑rate services requiring IEC 60534‑4 / ANSI/FCI 70.2 Class IV or Class VI shut‑off performance.

When process‑operating temperatures exceed the temperature rating of the diaphragm material, mount the actuator below the regulator body’s centerline. A condensate barrier formed inside the impulse‑sensing line and actuator diaphragm housing shields the diaphragm from high‑temperature damage. Any alternative mounting orientation shall incorporate a dedicated, reliable condensate‑barrier assembly. Please consult the factory for further technical guidance.

Technical Data

Body material: Materials : Carbon Steel 316, Stainless Steel, Chrome-Molybdenum Steel

Specifications

Function: Pressure Reducing 535H;Differential Pressure Reducing 535H-50;Back Pressure 536H;Differential Back Pressure 536H-50
Body: Type : High Capacity Globe Flow Direction: Flow-to-Open
Bonnet: Type : Bolted, Standard Bolted, Extension - Optional/p>
Trim: Plug Type:Disc
Seat Ring: Threaded or Quick Change
Guide: Heavy Top Guided
Capacity: Full Area, Reduced Capacity in All Sizes
Characteristic: Quick Opening
Actuator: Type : 10900 Series
