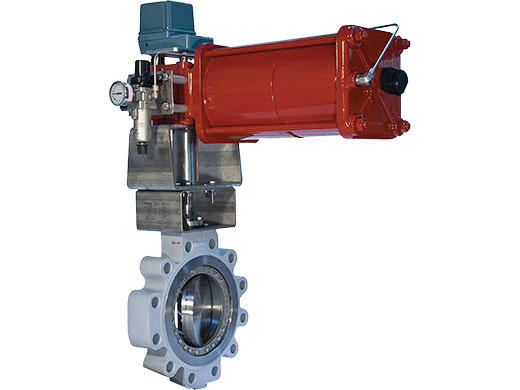

The Masoneilan 33000 Series by Baker Hughes leverages exclusive patented engineering and sophisticated manufacturing processes to integrate triple offset geometry, granting bidirectional sealing capability. The product line maintains fully tight isolation shutoff over wide pressure and temperature operating envelopes, covering continuous modulating control and discrete on-off process requirements.Low operational friction is attained through the disc’s third offset angle and metal-to-metal seat pairing. This mechanical arrangement preserves bubble-tight isolation sealing for two primary service modes: complete on-off isolation and precise high-range throttling control.As a heavy-duty triple offset butterfly valve solution, the 33000 Series delivers outstanding zero-leakage performance. Its streamlined construction offers significant cost advantages relative to larger gate, globe and ball valve solutions widely utilized in process isolation systems.
Technical Data
- Pressure rating
- Ratings: ASME CL150 – CL600
- Body material
- Carbon steel WCC, Stainless steel CF8M, Low Temperature Carbon Steel LCC, Others on request Trim: Triple Offset
- Connection type
- Wafer, Lugged, Raised Face Flanged, RTJ Optional, EN Flange
Specifications
- Body Face to Face
- Wafer and lugged bodies API 609 Table-3 (A) (Category B Valves up to 24”);Double flanged short pattern: API609 table 3 (C) (Category B Valves up to 24”)
- o Class 150
- dimensions per ISO 5752 Basic series 13, EN 558-2, EN 593
- o Class 300
- dimensions per ISO 5752 Basic series 14, EN 558-2, EN 593
