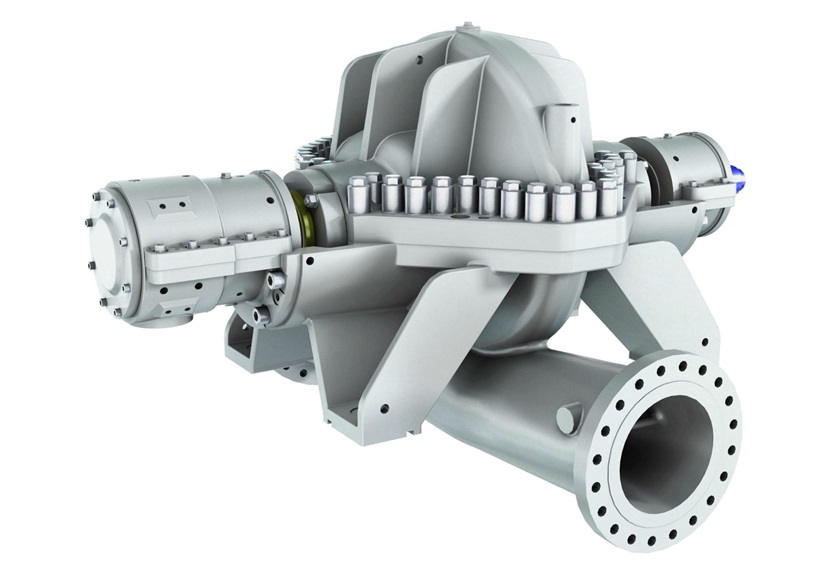

HPDM axially split volute pumps are custom-engineered units widely deployed for high-volume liquid transportation over long distances and high elevations, typical of water and crude oil pipeline systems. They are available in single-stage and multistage configurations with either single‑suction or double‑suction impeller designs.
Technical Data
- Temperature range
- Temperatures: Up to 70ºC / 160ºF
- Pressure rating
- Pressures: Up to 175 bar / 2,500 psi
Specifications
- Capacities
- 1,000 to 20,000 m3/h / 4,400 to 88,000 US gpm
- Heads
- Up to 700 m / 2,300 ft
- Discharge sizes
- 250 to 1,600 mm / 10 to 64 inches
