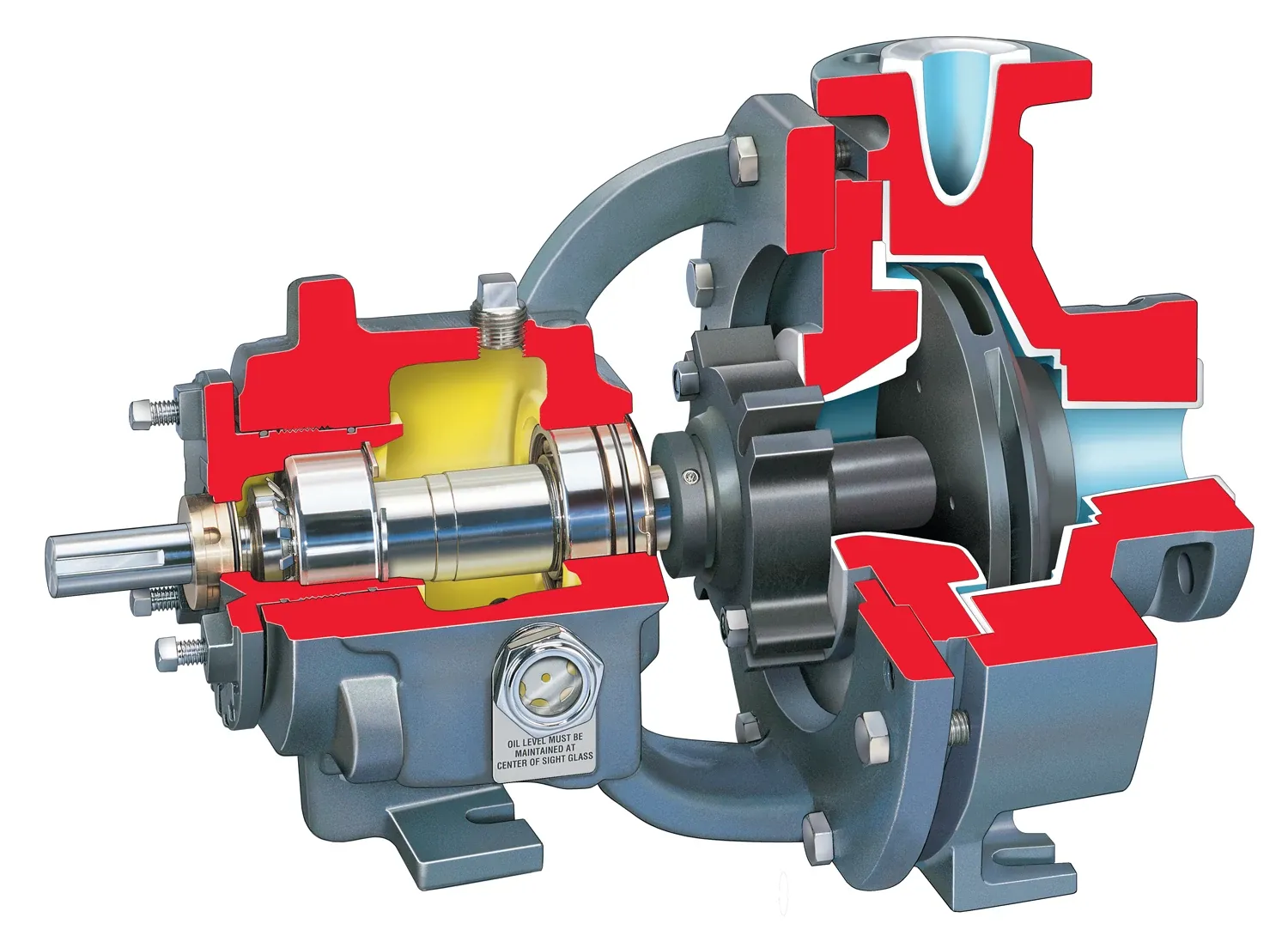

Durco PolyChem S-Series Sealed ASME(ANSI) Chemical Process Pump With Fluoropolymer-Lining
Durco PolyChem S‑Series is an ASME B73.1 compliant fluoropolymer‑lined chemical pump with conventional sealing. The PFA‑lined wet end ensures superior chemical and temperature resistance, while the proven Mark 3 power end delivers consistent, reliable performance.
The Durco PolyChem S‑Series chemical process pump features a fluoropolymer‑lined construction with conventional sealing and complies with ASME B73.1 dimensional standards. Its PFA‑lined wet end delivers exceptional corrosion resistance and broad temperature tolerance. Equipped with the field‑proven Mark 3 power end, the PolyChem S‑Series is engineered for optimized performance and long‑term operational reliability in harsh chemical services.
Technical Data
Temperature range
Temperatures from -30°C to 150°C (-20°F to 300°F)
Pressure rating
Pressure Class Range: class 150-300, Class 600 Derated
Specifications
Parameter
The PolyChem S-Series pumps is designed to meet ASME B73.1 dimensional standards.
Flows to
420 m3/h (1850 gpm)
Heads to
145 m (480 ft)
Ten Sizes
Four (4) ASME Group 1;PS 1.5x1-6;PS 3x1.5-6;PS 3x2-6;PS 1.5x1-8
