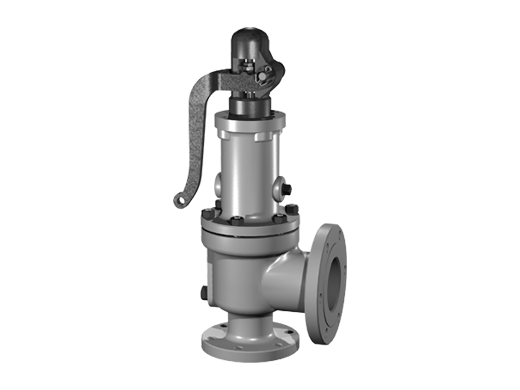

Consolidated Type 1900/P Safety Valve

Technical Data

Temperature range

-20°F to 850°F

Pressure rating

5 psig to 6000 psig

Body material

Carbon steel body with stainless steel trim

Specifications

Inlet Sizes

1" through 8"

Inlet Ratings

ASME Class 150 to 2500

Outlet Sizes

2" through 10"

Outlet Ratings

ASME Class 150 to 300

Orifice Sizes

D through T
